These Are Instruction to Flash stock Rom And Any Custom Rom using Smart flash tool and Sp flash tool on Windows Pc.
Requirements :.
Your Android Smartphone Should Have at -least 50-60 percent of battery to perform the flashing process.
USB data cableMediaTek USB VCOM drivers
SP Flash Tool ( Latest version MTK Flash Tool v. 5.1343.01 (18.10.2013))
First of all, make sure that you have MediaTek DA USB VCOM drivers installed.
Flashing the whole ROM
First of all open SP Flash Tool, then click Scatter-loading
button to load the
correct scatter file
(MT6575_Android_scatter_emmc.txt or MT6577_Android_scatter_emmc.txt, depending on which phone you have) for your device and ignore any message that may appear.
Turn off your phone,
remove the battery and replace it after some seconds (and don't turn on the phone).
Press F9 (or hit
Download button) and connect your phone into the computer via USB data cable.
The process will start and a red progress bar will appear.
After the red progress bar is complete, there will appear a purple progress bar.
Right after the purple progress bar is complete, a message will appear underneath it:
“
Please insert USB cable in x seconds” and then the download will start right away (you will see the yellow progress bar filling up).

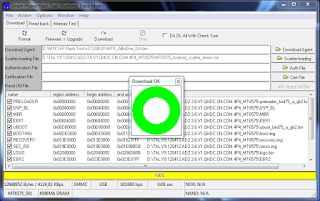

When the yellow bar is complete, you'll get a popup with a green circle and
Download OK message,
which means that the process has been successfully terminated.
You can now safely disconnect your phone and turn it on. The process ends here.
Flashing only part of the ROM
In case you want to flash just one part of the ROM, that is also possible. In the shown example, only
Recovery image will be flashed.
Deselect all parts except the one(s) you want to flash and then press F9 (or hit
Download button)
The tool will immediately show a warning because not all parts are selected, but you should continue anyway. Safely press
Yes to continue.
The download of the chosen partition image will start and after the yellow bar is complete, the popup with the green circle should appear
Please note that, even though it isn't mandatory to select it on the list of images to flash,
preloader file must be present in the same folder as the other partition(s) that you want to flash, or else phone will not be able to enter into download mode.
